Beschrijving
Laat je deskundig voorlichten, dit zijn geen systemen die je bij een tijdelijke stunt aanbieder op marktplaats aanschaft , eentje die een jaartje later wellicht niet meer bestaat….
Als ze al mogen leveren… !
De erkende dealers draaien en werken al jaren met DB tech array techniek en zij alleen kunnen alle support geven die nodig is , nu en komende jaren.
En met volledige backupsupport rechtstreeks vanaf fabrikant.
Wij hebben 1:1 contact met de technische insiders van DB tech indien nodig.
3-WAY TRI-AMPED ACTIVE LINE ARRAY MODULE
1600 W RMS
138.5 dB MAX SPL
USABLE BANDWIDTH [- 6 dB] 75 Hz – 18 KHz
DANTE & A2NET READY
HF: 1×1.4″ exit, 3″-2″ v.c., coax NEODYMIUM
LF: 2 x 8”, 2.5” v.c. – NEODYMIUM

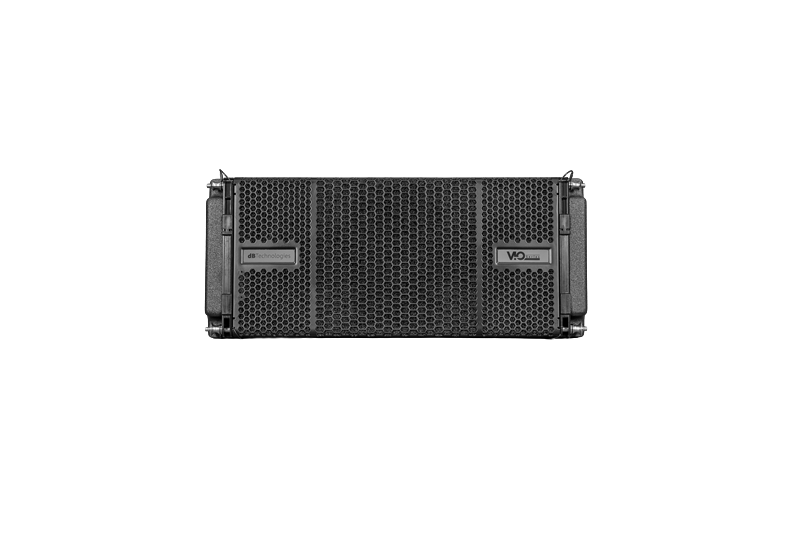

VIO L1608 is a 3-way, tri-amplified active line array module that delivers dramatic output, refined clarity and consistent coverage from a deceptively compact footprint. It advances dBTechnologies’ research into precision-scaled acoustic architecture — in simpler words, bringing three-way performance to an enclosure the size of a traditional 2-way dual-8″ array.

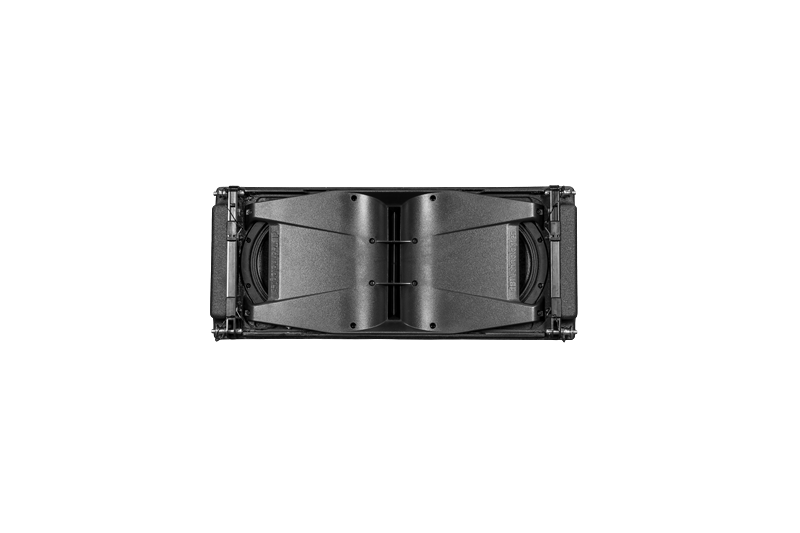

The enclosure contains dual 8-inch neodymium LF drivers, and a coaxial MF–HF driver – with a low crossover point around 600 Hz – which is assembled on an optimized waveguide, producing a stable horizontal response and a natural midrange character across the listening field. Side-Firing Bassreflex Port geometry enhances internal airflow and acoustic loading, supporting output performance that far exceeds expectations for the cabinet’s reduced physical volume.
Designed for real-world production demands, VIO L1608 incorporates several engineering principles that shaped the success of the VIO L1610, adapted here for the dual-8″ platform. This includes improved environmental protection, an enhanced 3-point rigging system for faster deployment and current-generation VIO technologies such as inclinometer integration, opto-isolated preamps, NFC-assisted positioning, and a bright front ID LED for positioning and identification.
For the first time in a VIO module, the award-winning A2Net protocol is included as a standard feature, enabling high-resolution digital audio distribution and complete Aurora Net control. As part of the VIO ecosystem, L1608 benefits from matched phase response, latency and sensitivity across systems running firmware 2.0 or later, allowing seamless integration with VIO L1610, L212 and other modules in the platform. The new DRK-28 flybar supports both flown and stacked configurations and transports on the dolly, simplifying logistics and reinforcing a unified deployment workflow.
With its distinct acoustic architecture, deceptively compact footprint and dramatic output, VIO L1608 represents an evolution for compact professional sound reinforcement.
