Beschrijving

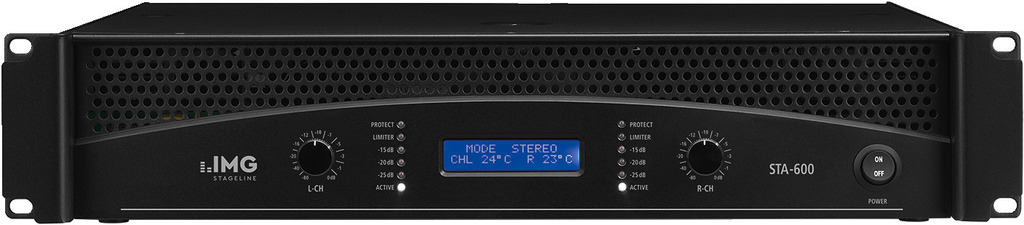

Professional stereo PA amplifier,
with integrated crossover network and limiter.
- LCD for indicating temperature, operating mode, protective function
- Integrated crossover network: 120 Hz, 24 dB/oct., selectable: subwoofer, full range or satellite operation
- 3 operating modes can be selected (stereo, parallel or bridged)
- Temperature-controlled fans
- 2 level controls
- Ground lift function
- Speaker switch-on delay
- Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
- Each channel with LEDs for indicating operating voltage, level and limiter
- NEUTRIK SPEAKON connections
SPECIFICATIONS
Peak output power 1,000 W Power rating 600 W Power rating at 4 Ω 2 x 300 W Power rating at 8 Ω 2 x 200 W Power rating with 8 Ω bridged operation 1 x 550 W Channels 2 Inputs 1 V/20 kΩ Frequency range 20-20,000 Hz Crossover network 24 dB/oct. Crossover frequency 120 Hz Integrated limiter yes S/N ratio > 95 dB Crosstalk attenuation > 60 dB THD < 0.1% Power supply ˜ 230 V/50 Hz/1,000 VA Mains voltage ~ 230 V Mains frequency 50 Hz Power consumption, operation 1,000 VA Admiss. ambient temp. 0-40 °C Width 482 mm Height 88 mm Depth 418 mm Rack units, RU 2 Weight 11.5 kg Connections 1 x 3-pole XLR L/R, bal.1 x 6.3 mm jack L/R, bal. 1 x NEUTRIK SPEAKON L/R
2 x pair of screw terminals
Packaging dimensions (W x H x L) 0.57 x 0.16 x 0.58 m Gross weight 14.52 kg Net weight 11.7 kg EAN code 4007754208863 Net weight 11.7 kg
