dBTechnologies VIO X206 point / array / centre speaker

Categorieën: , , , , Tag:

Beschrijving

Unieke speaker die in de 100 x 15 graden versie helemaal perfect is in te zetten als frontfills en centre speakers !

Wellicht een toepassing waar je zo een twee drie niet aan denkt, maar wij als praktijk bedrijf dus wel.

Kies je liever voor de passieve installatie versie hiervan, dan bied de IS26T uitkomst die deelt dezelfde waveguide n.l.





VIO X206 is an ultra-compact professional speaker that delivers sound pressure and linear response to the highest level, just like VIO X205, but in addition to this, you can turn it into a true compact line array system.

The speaker has been designed in two different versions, one model mounts a 90° by 60° rotatable horn. The other one is equipped with a two-path waveguide conveying a 100° by 15° dispersion, so perfect for line array applications. The real gem here is that users can remove and exchange horns at any time, based on their requirements.
The firmware to adapt the behaviour of the 2 horns can be changed accordingly with the quick switch on the back of the box.
VIO X206 is equipped with two 6.5″ neodymium transducers and a 1″ driver, powered by a 900W RMS Digipro G3 amp. Nevertheless, just like all companion cabinets in VIO X series, the cabinet allows for complete networkability thanks to RDNet and real time monitoring and control via Aurora Net.

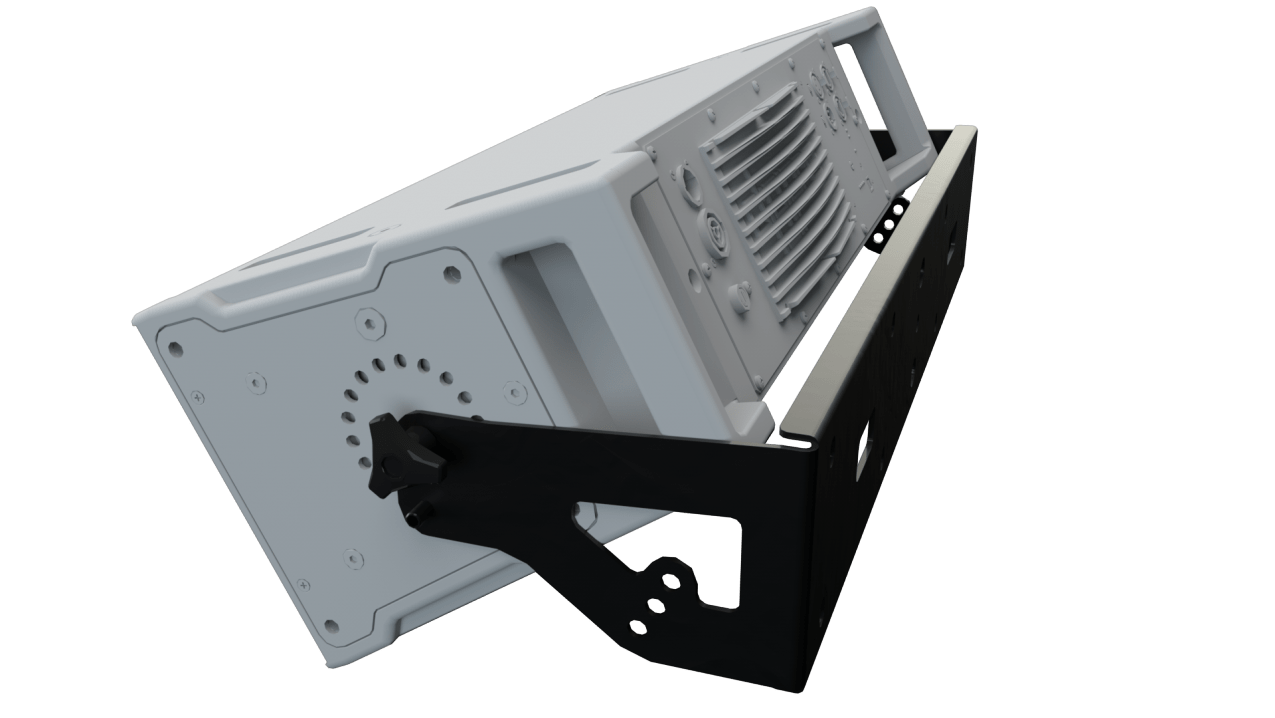

Thanks to the two variants it cover a wide range of applications, meeting the requirements of both production and integration. This sleek, slim cabinet can easily fits onto a live stage, a corporate event facility, as well as a meeting room or a bar. A series of accessories helps you to create the best configuration for the venue. Several brackets adapt X206 on a speaker stand (VB-2X6, SA-2X6), one of them also allows it to be flown with a C clamp (VB-2X6). A simple link plate (LP-2) is available to pair or array them. It is also possible to use 2 of the 90×60° version both flown or ground stacked with a 60° spread bracket (LP-3). An extra 60° spread bracket allows for flying or polemounting of up to 6 90×60° boxes side by side, with a steady angle. A U shaped bracket (HB-2X6) allows for various configurations such as wall mounting or truss mounting. The same accessory also serves as horizontal pole mount for a 90×60° X206 or multiple line array versions of X206. If you need to stash a frontfill, or if you plan to ground stack several line arrays directly on a sub, this will be a safe and reliable solution to secure the load with the M20 threaded mount. Finally two flybars are available, a standard one for a single array (DRK-1) and a multiple one (DRK-2) that allows to fly 2 arrays of tops or subs, or even X206 and VIO S115 subs together.

TECHNICAL DATA
Speaker Type
2 Way Active Loudspeaker

ACOUSTICAL DATA
Usable bandwidth [-10dB]
66 – 19.500 Hz / 66 – 18.000 Hz [VIO X206-100]

Frequency Response [-6dB]
70 – 18.000 Hz / 70 – 17.500 Hz [VIO X206-100]

Max SPL
131 dB

HF
1x 1”, 1.75 v.c.

LF
2x 6.5”, 1.75″ v.c

VIO X206 Directivity
60° x 90° [rotatable]

VIO X206-100 Directivity
100° x 15° [H x V]

AMPLIFIER
Amplifier
900 W RMS Class-D Digipro® G3

Cooling
Convection

Power Supply
Auto-range SMPS

PROCESSOR
Controller
DSP 32 bit


AD/DA Converter
24 bit/96 kHz


Limiter
Peak, RMS, Thermal


Processing
FIR Linear Phase Filters

INPUT
Signal Input
1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)

Signal Output
1x XLR balanced, 1 x RJ45 Link (RDNet)

Power Socket
1x PowerCON TRUE1 In

1x PowerCON TRUE1 Out

Controls
1x input Sensitivity Rotary Encoder (10x presets)

1x Horn Model Selection Switch

1x On LED

1x Status LED

1x Signal LED

1x Limiter LED

3x RDNet Status LED

MECHANICS
Housing
Wooden Cabinet, Polyurea painting

Handles
2 Integrated

Rigging points
2x M10 Threaded Nuts (top and bottom)

Width
210 mm (8.3 in)

Height
650 mm (25.6 in)

Depth
270 mm (10.6 in)

Weight
17.3 kg (38.14 lbs)

Aanvullende informatie

Gewicht10 kg

Merk

DB-Technologies

Vraag vrijblijvend offerte bij ons aan voor DB-TECH.Het prof. merk waar we zelf in onze dagelijkse verhuur veel van gebruiken. o.a: DVA line-array's, actieve subs, de actieve speakers en versterkers. We doen vrijwel al ons verhuur werk met DB-TECH uitvoeren ;-)
