For years people have been asking KV2 to build foldback monitors that had the same sound characteristics as EX and ESD ranges. Many foldback wedges utilize on board active technology or bi-amping and external processing to achieve optimum output. At KV2 we opted for a full passive design utilizing our revolutionary onboard analog delay for perfect phase coherency. This feature does away with the need for expensive external processing and bi-amping, halving amplifier costs.

ESM12 – The Ultimate Passive Monitor

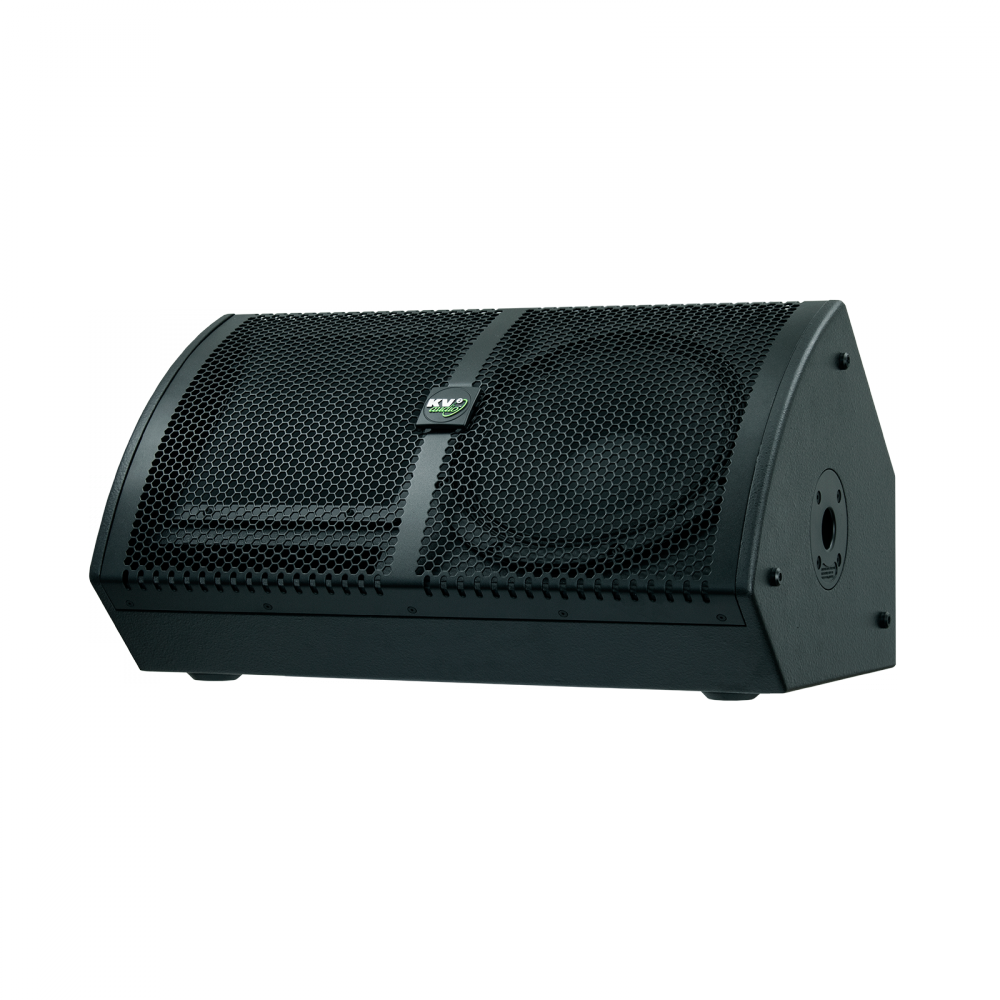

The ESM12 is a full-range low profile 2-way, passive monitoring solution with a 12″ trans-coil neo woofer and the same 3″ NVPD large format compression driver found in our flagship VHD products. The ESM12 also features our revolutionary passive delay line, which dramatically reduces feedback. Housed in a professional Baltic Birch cabinet, with a protective Polymer coating and heavy-duty grill, the ESM12 can be utilized for FOH applications with the inclusion of a pole mount. Truly one of the most impressive monitoring solutions on the market today, the ESM12 is available in left and right configurations.

Features

• Professional, Baltic birch construction with wear resistant polymer coating
• 127dB sustained output, 130dB peak with very high dynamic range
• Compact, wedge shaped cabinet design specifically developed for use in stage monitor applications or low profile ceiling monitoring
• Rotatable wide dispersion 40° H x 80° V horn
• Revolutionary passive delay line
• State of the art 3″ (76 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, exceptionally low distortion and extended frequency response
• 12″ woofer with Super Acoustic Active Impedance Control (AIC), voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers distortion and provides increased frequency response linearity
• Specially designed acoustic fabric covering and protecting the compression driver against liquid spillage
• “Top-hat” pole mount allows the ESD12M to be used as a conventional loudspeaker


  ---

  System Acoustic Performance

  Max SPL Long-term	127dB
  Max SPL Peak	130dB
  -3dB Response	55Hz to 22kHz
  -10dB Response	41Hz to 30kHz (half space)
  Recommended Power	500W
  Sensitivity	98dB
  Impedance	4Ω
  Crossover Point	1.2kHz

  High Frequency Section

  Acoustic Design	Horn Loaded
  High Horn Coverage Horizontal / Vertical	40° x 80°
  Rotatable Horn	YES
  Throat Exit Diameter / Diaphragm Size	1.4″ / 3″
  Diaphragm Material	Nitride Titanium
  Magnet Type	Neodymium
  Protection	RMS Limiter

  Low Frequency Section

  Acoustic Design	Front Loaded, Bass Reflex
  Woofer Size / Voice Coil Diameter / Design	12″ / 2.5″ / Trans Coil
  Magnet Type	Neodymium
  Diaphragm Material	Epoxy Reinforced Cellulose
  Protection	Thermal breaker – autoreset

  Speaker Input

  Speaker Input

  2x Neutrik Speakon®

  Cabinet

  Cabinet Material	Baltic birch
  Handles	1
  Pole Mount	35 mm
  Color	“Orange peeled” Matt Black or any RAL

  Physical Dimensions

  Height	368 mm (14.48″)
  Width	606 mm (23.86″)
  Depth	368 mm (14.48″)
  Weight	23 kg (50.7lbs)
