IMG Stage Line STA-2200 Amplifier

Beschrijving

• Class H technology
  with power-optmised PSU
  technology

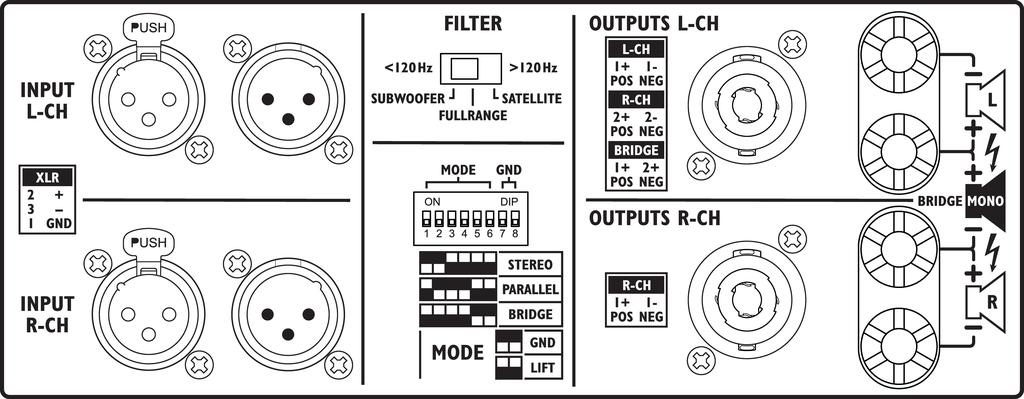

• 3 operating modes
  can be selected (stereo,
  parallel or bridged)
• Integrated crossover
  network: 120Hz, 24dB/oct.,
  switchable subwoofer,
  full range or satellite
  operation
• LCD for temperature,
  operating mode,
  protective function
• Temperature-controlled
  fan
• 2 level controls
• Ground lift function
• Speaker switch-on
  delay
• Protective circuit
  with LED indication for
  protection against short
  circuit, overheating and
  DC voltage overlay at
  the outputs
• LED’s for each
  channel for operating
  voltage, level and
  limiter

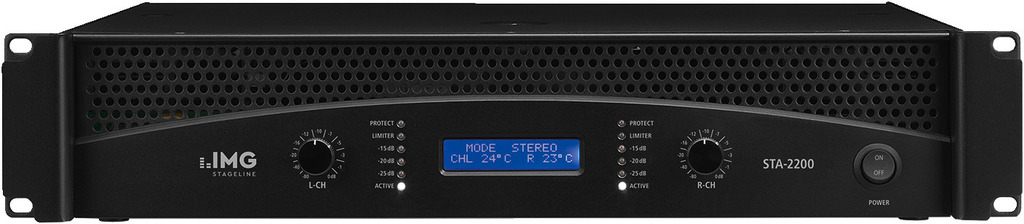

The IMG Stage Line STA-2200
stereo amplifier has especially been designed for stage and disco
applications. The amplifier may be operated in stereo
mode, in mono parallel mode, or in mono bridge mode. With its class H output
circuit it operates more efficiently than standard amplifiers of class AB
technology. Due to a switchable filter the amplifier may be used for
subwoofers or for the full frequency range exceeding 120Hz. The amplifier
can be operated at a 2Ω load, the protective circuits are designed
accordingly to protect the amplifier and the speakers. Two powerful,
temperature-controlled fans supply the necessary cooling of the amplifier.
Due to the extreme power the STA-2200 can develop it is equipped with
Neutrik PowerCon mains connector.
